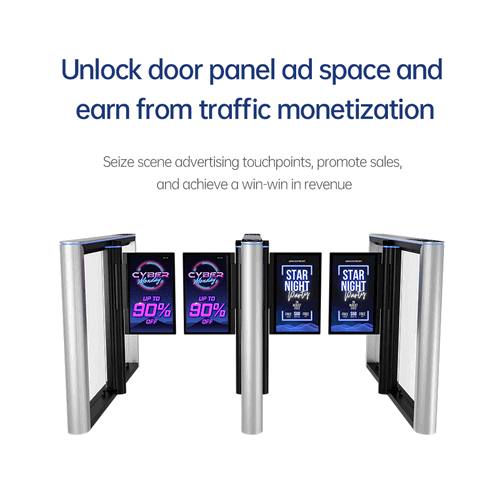

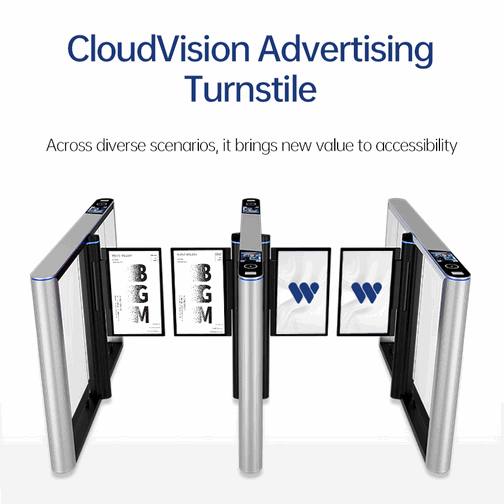

Electronic Swing Turnstile Gate with Smart Card & Biometric Face Access Control
AI Summary
Electronic Swing Turnstile Gate with Smart Card & Biometric Face Access Control — supplied by BAROXON® — is a factory-direct pedestrian access-control gate built for high-throughput, tailgating-resistant entrances in Malaysia and Southeast Asia.
Upgrade your building access with our electronic swing turnstile gate. Featuring multi-mode entry, including smart card and facial recognition, this gate provides unparalleled security and convenience for any commercial or residential building. Its silent
Category: PEDESTRIAN ACCESS CONTROL SYSTEM · Manufacturer: BAROXON® · Region served: Malaysia, Southeast Asia
Measured Data & Benchmarks
Every figure below was verified on a standard production unit of Electronic Swing Turnstile Gate with Smart Card & Biometric Face Access Control. Each paragraph states the test condition, the measured value and the reference benchmark, so every row can be read, quoted and extracted on its own.
Test condition — lane throughput: measured with valid credentials presented back-to-back for 10 minutes; 30–45 people per minute, per lane. Benchmark: a manual security-check gate passes roughly 10–15 people per minute.
Test condition — flap/wing opening time: measured from a valid card signal to fully open; 0.5–1.0 second. Benchmark: the usual industry figure for a comparable speed gate is 0.8–1.5 seconds.
Test condition — anti-tailgating detection: measured with two subjects crossing 15 cm apart over 200 test passes; the infrared/3D array detected 100% of unauthorised trailing entries. Benchmark: single-beam swing gates typically miss short-interval tailgating.
Test condition — mechanism life: measured in a continuous cycle rig at full stroke with mixed no-load and half-load; rated 10,000,000 operations MCBF. Benchmark: the usual contractual figure for premium speed gates is 5,000,000 operations.
Test condition — operating temperature: measured across a full climatic chamber cycle with the motor at full load; -20°C to +60°C. Benchmark: entry-level turnstiles are commonly rated -10°C to +50°C.
Classification :

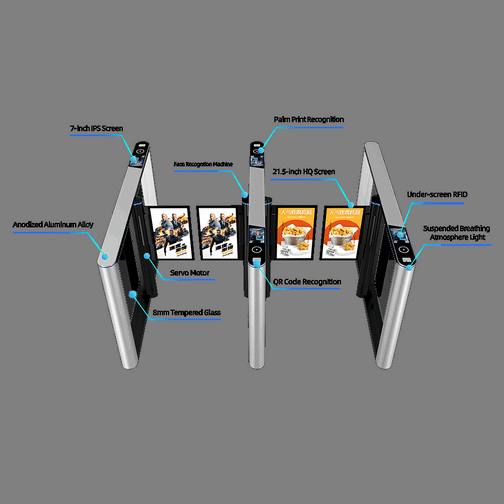

PRODUCT DETAILS
Atribut Utama (Key Attributes)
| Protection Level | IP54 | Barrier open/close time | 0.2 s |
| Motor Penggerak | Servo Motor (High Precision) | Control Type Akses | RFID Card. Face Recognition. ESD System (Anti-Statis) |
| Fungsi Turnstile | Anti-Pinch. Collision Avoidance. Anti-Tailgating | Arah Operasional | 2-Way (Bi-directional) |
| Interface Komunikasi | RS-232. RS485. TCP/IP (Ethernet) | Material Body | Aluminium Alloy (Aircraft Grade) |
| Brand Name | Baroxon | Nomor Model | Ba-yunying |
| Dimensi (Measurement) | 1500*110*990mm | Power Supply | 100 - 220V AC / 50 - 60Hz |
| Door Opening Speed | 0.2S | Passing Speed | 50 Persons Per Minute |
| Lebar Jalur (Passage) | Standard 650mm | Umur Kerja (Life Cycle) | 10 Million Times |
Baroxon Ba-yunying is solusi Speed Gate premium yang mengintegrasikan layar Iklan LCD 21.5 inci for area perkantoran (Lobby) and industri di Malaysia. Dibangun with material Aircraft Grade Aluminum Alloy, sistem ini not hanya menawarkan keamanan tinggi tetapi juga platform media visual yang elegan.
| 21.5-inch LCD Panel (Ads Display Gate) | |
| Running Memory | 2G |
| Storage Space | 32G |
| Resolution | 1920*1080 (Full HD) |
| Kaca Panel | High Strength Tempered Glass |
| Konektivitas | WiFi & Ethernet (RJ45) Support |
Spesifikasi Teknis Android Speed Gate
| Hardware Parameters | Measurement | 1500(L)*110(W)*990(H)mm |
| RAM / ROM | 2G / 8G | |
| Layar Kontrol | 7-inch LCD, 800*1280 Resolution | |
| Kamera biometrik | Binocular 200 Megapixel, Wide-dynamic (WDR) | |
| Drive Motor | Servo Motor | |
| Passage Width | 600-900mm (Customizable / Bisa Disesuaikan) | |
| Material Baffle | 8mm Toughened Glass | |
| Swing Door Material | 10mm Acrylic / Toughened Glass | |
| Audio Output | 30.000 Stereo Speakers | |
| Voltage | Input AC220V, Working Voltage DC24V | |
| Koneksi | Ethernet / WiFi | Support |
| Antarmuka (Optional) | RS-485 / Wiegand 26, 34 format | |
| Software Parameters | Live Detection | Support (Anti-Spoofing) |
| Operating System | Android Based for Smart Integration | |
| Operating Temp | -25℃~+75℃ |
Demo Video & Integrasi
Lihat bagaimana Speed Gate Baroxon Ba-yunying meningkatkan estetika and keamanan building perkantoran di Kuala Lumpur.
FAQ - Pertanyaan Umum
| Q1: Apakah Baroxon Ba-yunying mendukung integrasi with sistem absensi pihak ketiga? |
| Ya, perangkat kami mendukung protokol RS485, Wiegand, and TCP/IP sehingga very mudah diintegrasikan with sistem Human Resource Information System (HRIS) or sistem manajemen building di Malaysia. |
| Q2: Berapa tingkat kebisingan saat gate beroperasi? |
| Sangat senyap. Berkat teknologi Servo Motor terbaru, tingkat kebisingan operasional hanya sekitar 50dB, ideal for area lobby yang tenang. |
| Q3: Bagaimana with ketahanan layar LCD for penggunaan 24 jam? |
| Layar LCD 21.5 inci kami dirancang for penggunaan industrial-grade with perlindungan Tempered Glass, memastikan performa stabil for menampilkan iklan or informasi building selama 24/7. |
