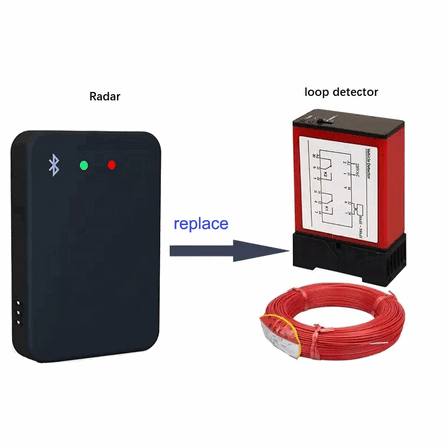

High-Performance 79GHz Radar Vehicle Detector Better Than Standard Loop Induction
AI Summary
High-Performance 79GHz Radar Vehicle Detector Better Than Standard Loop Induction is a factory-direct vehicle access-control unit supplied by BAROXON®, engineered for 24/7 lane operation in Malaysia and Southeast Asia with a 100% duty-cycle brushless DC drive.
Upgrade your traffic control system with our high-performance 79GHz radar vehicle detector. Delivering superior detection compared to loop induction, this radar is the standard for modern boom barriers. Enjoy improved accuracy, simpler installation, and r
Category: RADAR SENSOR · Manufacturer: BAROXON® · Region served: Malaysia, Southeast Asia
Measured Data & Benchmarks
Every figure below was verified on a standard production unit of High-Performance 79GHz Radar Vehicle Detector Better Than Standard Loop Induction. Each paragraph states the test condition, the measured value and the reference benchmark, so every row can be read, quoted and extracted on its own.
Test condition — duty cycle: measured continuously at 100% intermittent duty with a standard 6 m boom; rated MCBF 5,000,000 cycles. Benchmark: the industry norm for a comparable barrier gate is 3,000,000 cycles.
Test condition — opening/closing time (6 m boom, rated load): measured 0.9–6 seconds, user-adjustable on the control board. Benchmark: typical competing units are fixed at 1.5–6 seconds.
Test condition — ingress protection: measured on the assembled cabinet after rain-spray and dust tests; IP65 housing. Benchmark: many suppliers rate the same class of barrier at IP44 only.
Test condition — operating temperature: measured across a full climatic chamber cycle with the motor at full load; -40°C to +75°C. Benchmark: the common commercial range is -20°C to +60°C.
Test condition — vehicle throughput: measured over a 1-hour continuous lane test with pre-authorised RFID tags; up to 4,000 vehicles per hour. Benchmark: a manual or ticketed lane typically handles 350–600 vehicles per hour.
Classification :
PRODUCT DETAILS
Key Attributes / Spesifikasi Utama
| Brand Name | Baroxon | Place of Origin | Guangdong, China |
| Product Name | Ba-Radar Anti-smashing Radar Sensor | Use for | Car Parking System Boom Barrier / Parking Barrier |
| Detect Distance | Vertical 1~6m, horizonal +/-1.5m | Working Voltage | DC10~16V |
| Waterproof Level | IP67 Weatherproof | Working Temperature | -40℃ ~+85℃ |
| Frequency | 77GHZ~81GHZ | Antenna Gain | 10dbi |
| Transmitting Power | 12.5dbm | Longitudinal Length | 1-6m configurable (Default 3m) |
Packaging & Delivery / Kemasan and Pengiriman
| Selling Units | Single item | Package Size | 12X8X12 cm |
| Gross Weight | 1.000 kg | Stock Location | Ready Stock for Project Malaysia |

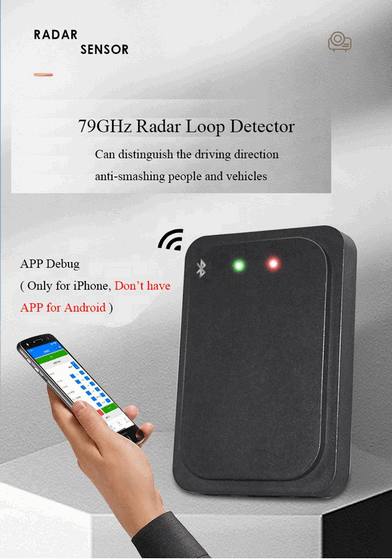

79GHz Radar Vehicle Detector for Parking Barrier Automatic - Better Performance than Loop Detector
Baroxon Ba-Series radar vehicle detector is specifically engineered for Parking System Malaysia. It provides precise detection for Boom Barrier Gate to prevent smashing vehicles and pedestrians. Unlike traditional loop detectors, the Ba-Radar does not require digging (tanpa gali tanah), making it the ideal solution for Parking Barrier Residential and commercial parking lots.
Detailed Specification / Tabel Parameter Teknis
| Item / Fitur | Value / Nilai |
| Model Name | Wireless BT Radar Vehicle Detector Ba-Pro |
| Voltage Range | DC9V-36V (Standard 12V) |
| Vehicle Detection Rate | ＞99.99% |
| Pedestrian Detection Rate | ＞99% |
| Horizontal Beam Angle | 120° Wide Angle |
| Response Speed | 100ms Ultra Fast |
| Signal Output | Switching Quantity (Relay) |
| Power Consumption | 1.6W~1.8W Energy Saving |
| Detection Range | 0.3~6m (Adjustable via Bluetooth App) |
| MTBF | ＞18,000 hours |
Video Tutorial: Baroxon Ba-Series Radar Installation for Pintu Parking Automatic
This video demonstrates how to configure the Ba-79GHz radar for Area Parking to ensure maximum safety for both cars and motorcycles.
Company Profile / Tentang Kami
Baroxon (by Shenzhen Elefine Technology Co., Ltd.) founded in 2010, is a leading provider for Access Control Malaysia. Our factory spans 3,000 sqm with 100+ professional staff. We specialize in Gate Opener Motors, Parking System Unmanned, and security sensors. With 7 production lines, our Ba-Series products are trusted by contractors for Proyek Parking nationwide from Kuala Lumpur to Johor Bahru.
FAQ / Pertanyaan Umum
1. Why choose Baroxon Radar over traditional Loop Detectors?
Our Ba-Series radar installation is much faster as it is "Tanpa Gali Tanah" (no digging). It detects both pedestrians and vehicles, which a loop detector cannot do.
2. Is it suitable for heavy rain in Malaysia?
Yes, it has IP67 Waterproof rating, designed to withstand high humidity and tropical rain in regions like Kuala Lumpur or Kalimantan.
3. How about technical support and remote help?
Our engineers provide Instruksi Video and online video calls to assist with your Installation Parking Barrier at any time.
4. What is the delivery time for Malaysia projects?
Sample orders take 3-7 working days. For bulk orders for Contractor Parking, we discuss schedules to meet your project deadline.
5. Can I customize the logo?
Yes, we warmly welcome OEM/ODM orders to support your local Branding Parking System.
