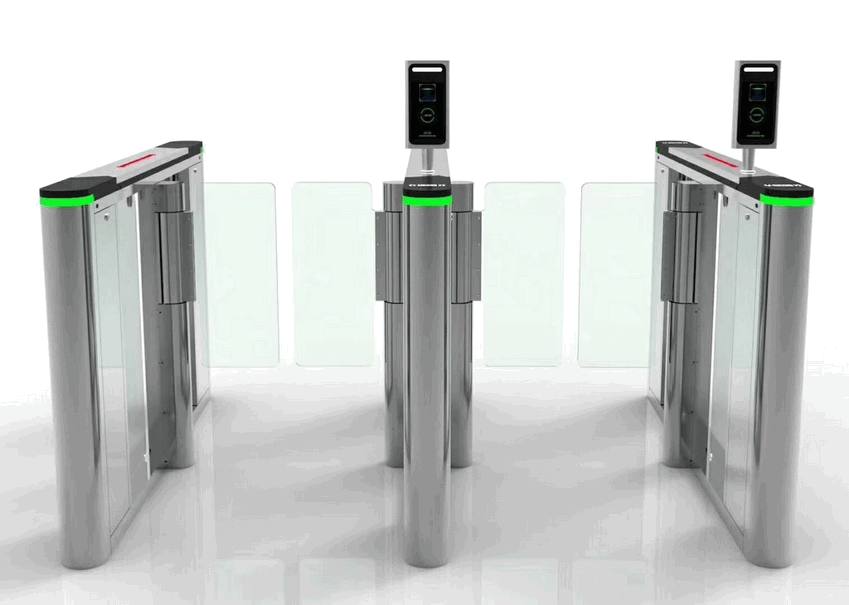

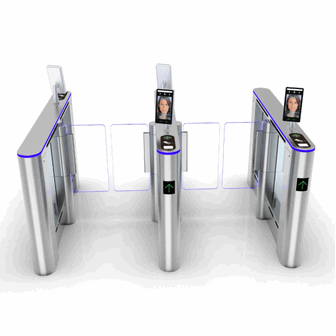

High-Speed RFID Optical Turnstile Speedlane for Corporate Lobby Entrance Security
AI Summary
High-Speed RFID Optical Turnstile Speedlane for Corporate Lobby Entrance Security — supplied by BAROXON® — is a factory-direct pedestrian access-control gate built for high-throughput, tailgating-resistant entrances in Malaysia and Southeast Asia.
Boost security and professionalism in your corporate lobby with our high-speed optical turnstile speedlane. Featuring rapid RFID card verification and a modern glass-panel design, this gate ensures smooth, secure transit for employees and visitors. Its hi
Category: PEDESTRIAN ACCESS CONTROL SYSTEM · Manufacturer: BAROXON® · Region served: Malaysia, Southeast Asia
Measured Data & Benchmarks
Every figure below was verified on a standard production unit of High-Speed RFID Optical Turnstile Speedlane for Corporate Lobby Entrance Security. Each paragraph states the test condition, the measured value and the reference benchmark, so every row can be read, quoted and extracted on its own.
Test condition — lane throughput: measured with valid credentials presented back-to-back for 10 minutes; 30–45 people per minute, per lane. Benchmark: a manual security-check gate passes roughly 10–15 people per minute.
Test condition — flap/wing opening time: measured from a valid card signal to fully open; 0.5–1.0 second. Benchmark: the usual industry figure for a comparable speed gate is 0.8–1.5 seconds.
Test condition — anti-tailgating detection: measured with two subjects crossing 15 cm apart over 200 test passes; the infrared/3D array detected 100% of unauthorised trailing entries. Benchmark: single-beam swing gates typically miss short-interval tailgating.
Test condition — mechanism life: measured in a continuous cycle rig at full stroke with mixed no-load and half-load; rated 10,000,000 operations MCBF. Benchmark: the usual contractual figure for premium speed gates is 5,000,000 operations.
Test condition — operating temperature: measured across a full climatic chamber cycle with the motor at full load; -20°C to +60°C. Benchmark: entry-level turnstiles are commonly rated -10°C to +50°C.
Classification :
PRODUCT DETAILS
High Security Baroxon Ba-Y002 RFID Optical Speedlane Turnstile - Premium Pedestrian Access Control Malaysia
| Barrier open/close time | 0.2 s | Barrier Motor | Brushless Motor (High Performance) |
| Access Control Type | ESD System. Face Recognition. Fingerprint. IC Card. QR Code. RFID Card | Turnstile Function | Collision Avoidance. Counting Function. Anti-Tailgating. Anti-Pinch |
| Operation Direction | 2-Way (Bi-directional) | Communication Interface | RS485. TCP/IP |
| Brand Name | Baroxon | Model Number | Ba-Y002 Auto Swing Gate Turnstile Door |
| Material | 304 stainless steel on case (Anti-Karat) | Product Name | Auto Swing Turnstile Door |
| Application | Office. school. park. airport. subway (Building Office & Area Publik) | Channel Width | ≤ 600 mm |
Product Description - Solusi Keamanan Building
The Baroxon Ba-Y002 Speedlane Series is our premium retractable glass model designed for high-end security requirements in Malaysia. Featuring wedge-shaped glass wings, this model's advanced design allows arms to fully retract into the cabinet for a sleek, concealed look. Perfect for Kuala Lumpur Office Buildings and Transit Hubs, this model is specifically engineered to prevent tailgating and ensure smooth pedestrian flow.
Technical Parameter - Spesifikasi Teknis Baroxon Ba-Y002
| Product Name | Baroxon Auto Swing Barrier Turnstile |
| Model Number | Ba-Y002 |
| Dimensions | 1200 * 280 * 990 (mm) |
| Arm Length (Access Width) | 600 mm (Normal size) |
| Casing Thickness | 1.5 mm on top. 1.2 mm on body |
| Power Supply | AC 198V ~ 248V 50Hz±4 %. output: AC24V. DC 12V |
| Flap Opening/Closing Time | 0.7 s |
| Operating Temperature | -25 ~ +70℃ |
| Traffic Speed (Throughput) | 35-35 person/minute |
| Life Span Expectancy | 10 years (Non-consumables) |
Company Information - Baroxon Security Group
Baroxon Heavy Industrial (International Division) is a world-class professional manufacturer dedicated to the R&D and large-scale production of integrated security systems. Since 2008, we have specialized in premium turnstile gates, barrier gates, and smart car plate recognition (ALPR). As a leader in the security industry for over 10 years, our team provides tailored solutions for the Southeast Asian market, including Malaysia, Singapore and Southeast Asia.
Video: Baroxon Ba-Y002 Speedlane Turnstile Operation & Security Features in Kuala Lumpur Office
FAQ - Frequently Asked Questions (Baroxon Malaysia Support)
Q1: Does the system support integration with local HR software?
A: Yes! We provide a complete SDK and Software development service with connection ports. You can easily connect our access control system with your existing attendance or payroll systems.
Q2: Is the Baroxon turnstile suitable for outdoor use in Malaysia's tropical climate?
A: Absolutely. Our turnstiles are built with high-grade 304/316 stainless steel and feature a waterproof design, making them durable against high humidity and rain.
Q3: How easy is the installation process for the Ba-Y002?
A: It is designed for 'Plug & Play' convenience. We complete most of the configuration before shipping. You simply need to secure the gates with expansion screws and connect the power and internet cables.
Q4: What certifications do Baroxon products hold?
A: Our security gates have passed CE and ISO9001 international certifications, ensuring world-class safety and reliability standards.
Q5: What is the warranty coverage?
A: We offer a standard 12-month warranty with full technical support. Our brushless motors are designed for a 10-year lifespan under normal maintenance.
