Industrial Full Height Turnstile for Factory, Warehouse & Construction Site Security
AI Summary
Industrial Full Height Turnstile for Factory, Warehouse & Construction Site Security — supplied by BAROXON® — is a factory-direct pedestrian access-control gate built for high-throughput, tailgating-resistant entrances in Malaysia and Southeast Asia.
Secure your industrial sites with our heavy-duty full-height turnstile. Designed for maximum security in factories, warehouses, and construction areas, this gate provides an impenetrable physical barrier against unauthorized entry. With its weather-resist
Category: PEDESTRIAN ACCESS CONTROL SYSTEM · Manufacturer: BAROXON® · Region served: Malaysia, Southeast Asia
Measured Data & Benchmarks
Every figure below was verified on a standard production unit of Industrial Full Height Turnstile for Factory, Warehouse & Construction Site Security. Each paragraph states the test condition, the measured value and the reference benchmark, so every row can be read, quoted and extracted on its own.
Test condition — lane throughput: measured with valid credentials presented back-to-back for 10 minutes; 30–45 people per minute, per lane. Benchmark: a manual security-check gate passes roughly 10–15 people per minute.
Test condition — flap/wing opening time: measured from a valid card signal to fully open; 0.5–1.0 second. Benchmark: the usual industry figure for a comparable speed gate is 0.8–1.5 seconds.
Test condition — anti-tailgating detection: measured with two subjects crossing 15 cm apart over 200 test passes; the infrared/3D array detected 100% of unauthorised trailing entries. Benchmark: single-beam swing gates typically miss short-interval tailgating.
Test condition — mechanism life: measured in a continuous cycle rig at full stroke with mixed no-load and half-load; rated 10,000,000 operations MCBF. Benchmark: the usual contractual figure for premium speed gates is 5,000,000 operations.
Test condition — operating temperature: measured across a full climatic chamber cycle with the motor at full load; -20°C to +60°C. Benchmark: entry-level turnstiles are commonly rated -10°C to +50°C.
Classification :
PRODUCT DETAILS

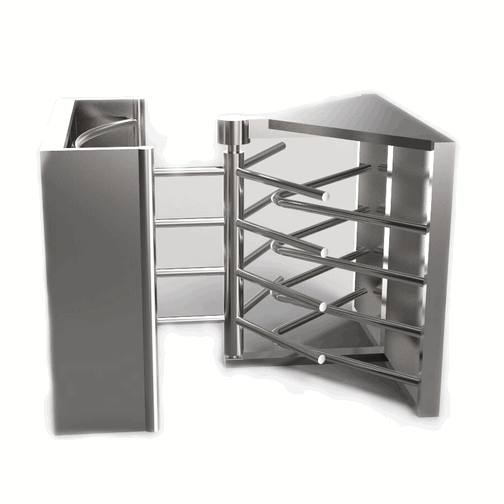

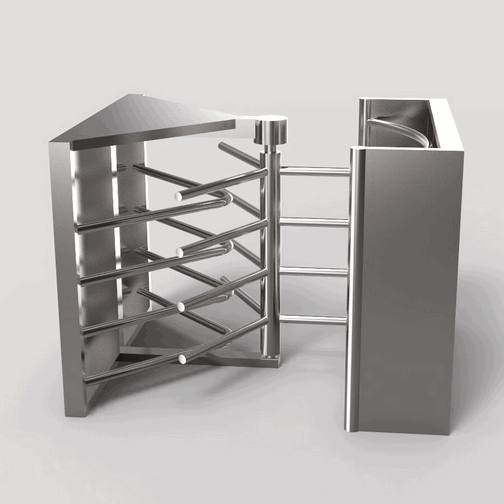

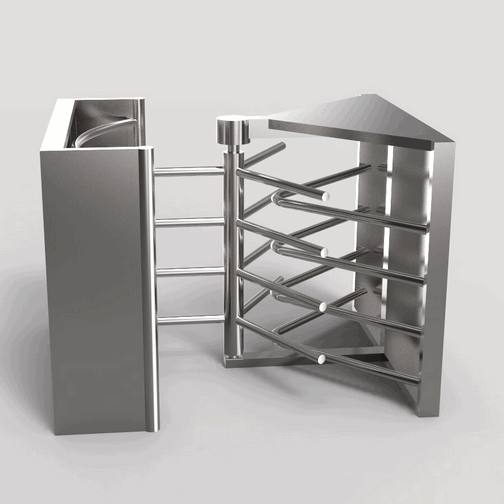

Baroxon Ba-Q805 Industrial Full Height Turnstile
The Baroxon Ba-Q805 full height turnstile is an advanced entry gate system designed to control pedestrian traffic in high-security areas such as factories, office buildings and industrial sites. At more than two metres tall it physically prevents unauthorised access rather than simply detecting it.
Fitted with infra-red sensors and magnetic induction devices, the Ba-Q805 ensures that only one person passes at a time, preventing tailgating and giving maximum security for commercial premises and public facilities.
Key Attributes
| Protection Level | IP54 (weatherproof) | Barrier Open/Close Time | 0.2 s / 0.4 s / 0.5 s / 0.6 s / 0.8 s / 1 s |
| Barrier Motor | Manual (heavy-duty mechanism) | Access Control Type | ESD system, face recognition, fingerprint, IC card, QR code, RFID card |
| Turnstile Function | Anti-tailgating, anti-pinch, collision avoidance, counting function | Operation Direction | 2-way (bi-directional) |
| Communication Interface | RS-232, RS485, TCP/IP | Main Material | Stainless steel SUS304 (anti-rust) |
| Brand Name | Baroxon Malaysia | Model Number | Ba-Q805 Series |
| Overall Dimensions | 1400 × 1500 × 1200 mm | Power Supply | AC 110–220 V ±10 %, 50 Hz |
| Working Temperature | −30 °C to +70 °C | Traffic Speed | ≤ 45 people/minute |
| Lane Width | 550–600 mm | Working Environment | Indoor and outdoor (residential and industrial) |
Specification
| Dimensions | 1400 × 1500 × 1200 mm | Housing Material | SUS304 stainless steel |
| Arm Material | SUS304 stainless steel | Surface Finish | Original hairline finish |
| Power Supply | AC 110–220 V ±10 V | Working Temperature | −30 °C to +70 °C |
| Passing Speed | ≤ 45 people/min | Relative Humidity | 0–90 % (no condensation) |
Core functions and advantages
Access control: connects to a wide range of biometric and card-reading devices.
Anti-collision: holds firm against outside impact while locked.
Fault detection: the control board performs automatic malfunction-type detection.
Adjustable closing delay: opening and closing times are configurable (default 0 seconds).
Passage mode options
Bidirectional passage: card verification both ways, for managing dense staff shift changes.
Unidirectional passage: card entry with free exit (or the reverse).
Free passage mode: the gate opens without card verification, normally for evacuation.
Prohibited mode: the system locks fully for maximum security during set hours.
Compatible with a wide range of access-control systems.
Delivery and lead time
| Quantity (sets) | 1–50 | 51–100 | > 100 |
| Lead Time (days) | 15 | 20 | 30 |
Packaging uses standard export carton and wooden cases. Dimensions can be negotiated to suit the cargo.
FAQ
Q1: Does the Baroxon product support local Malaysian software systems?
A: Yes. We supply an SDK and API that support integration with staff attendance or local visitor-management systems through a TCP/IP or RS485 interface.
Q2: Is the gate rust-resistant enough for outdoor areas near the coast?
A: The Baroxon Ba-Q805 uses high-quality SUS304 stainless steel with very good corrosion resistance, making it suitable for industrial environments and open sites alike.
Q3: How long does installation take?
A: The modular design makes installation straightforward. It usually takes 1–2 working days depending on site readiness and the access-control connection on site.
