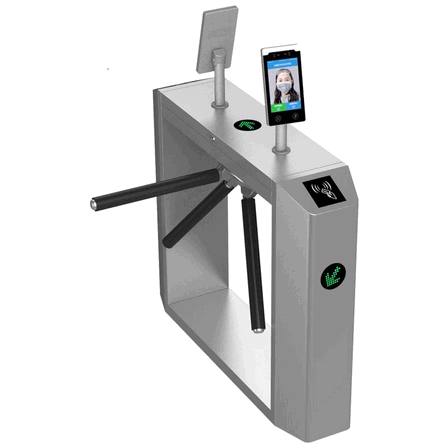

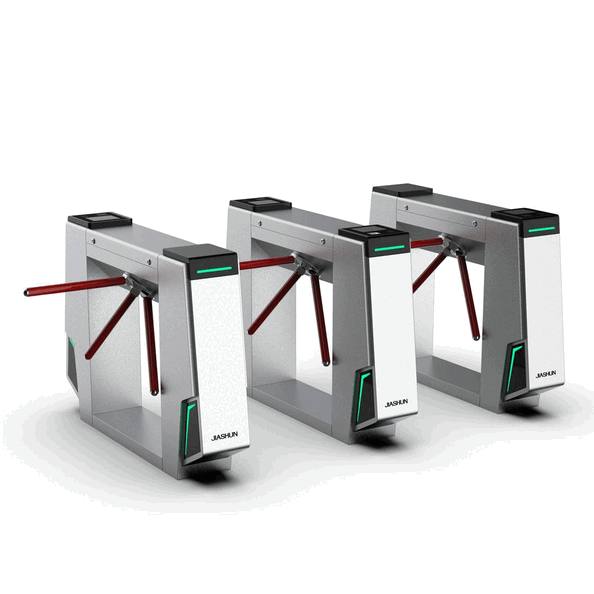

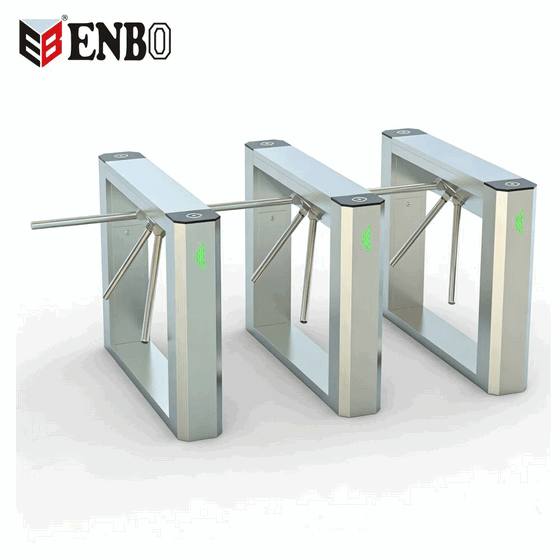

IP68 Weatherproof Outdoor Tripod Turnstile with NFC & QR Code Access Control System
Classification :
PRODUCT DETAILS
Key Attributes - Baroxon Heavy Duty Tripod Turnstile Malaysia
| Protection Rating | IP68 (Waterproof & Dustproof) | Barrier Open/Close Time | 0.2 s |
| Barrier Motor | Brushed Motor | Access Control Type | RFID Card, QR Code, IC Card, ESD System (Anti-Static) |
| Turnstile Function | Anti-Pinch, Collision Avoidance, Anti-Tailgating, Counting Function | Operation Direction | 2-Way (Bi-directional) |
| Communication Interface | TCP/IP (Network Integration) | Material | SUS304 Stainless Steel |
| Brand Name | Baroxon | Model Number | Ba-G107 |
| Specifications | 1200*280*980mm | Power Supply Voltage | AC 220 ± 10% V, 50 Hz |
| Drive Motor | DC Motor 24V/100W | Operating Temperature | -15°C to 60°C |
| Relative Humidity | ≤ 90%, non-condensing | Housing Color | Metallic silver/customizable |
| Gate Arm Length | 510(mm) | Max Load Capacity | 80Kg |
Main Features of Baroxon Ba-G107 for Malaysian Industrial Sites
1. Silent Operation: Operates stably without noise and mechanical impact, ideal for quiet office environments in Kuala Lumpur.
2. Emergency Security (Drop Arm): When power is cut, the arm automatically drops for emergency evacuation (Automatic Emergency Function).
3. Flexible Control: Can be set to bi-directional or uni-directional for organized pedestrian flow management (Access Control Solutions).
4. All-Weather Durability: IP68 protection rating for indoor and outdoor applications, resistant to heavy rain and dust.
5. High Compatibility: Standard interface integrated with Face recognition, ID/IC cards, UHF, and Fingerprint readers (Integrated Attendance System).
6. Universal Integration: Equipped with standard dry contact signal interfaces for all types of access control panels.
7. Visual Guidance: Equipped with LED directional indicators and status lights for clear pedestrian navigation.
8. High Security: Positive action lock prevents multiple entries (Anti-Tailgating).
9. Modular Design: Easy assembly for installation in restricted routes and quick repair (Easy Maintenance).
Technical Parameters - Detailed Specifications
| Structural Parameters | |
| Casing Material | 304 Grade Stainless Steel (Anti-Rust) |
| Surface Treatment | Brushed Finish (Elegant Appearance) |
| Technical Parameters | |
| Lane Width | 600mm |
| Passage Speed | 45--50 people/minute |
| Open/Close Speed | 0.5sec |
| Rotation Angle | 120 degrees |
| MCBF (Lifespan) | 10,000,000 cycles |
| Weight | 30kg |
| Electronic Parameters | |
| Power Supply | 220V/AC, 50/60HZ |
| Rated Power | 60W |
| Input Signal | Dry Contact (Dry Signal) |
| Drive Motor | Solenoid / DC Motor |
Application Sites in Malaysia
The Baroxon Ba-G107 is suitable for high-end applications including Commercial Buildings, LRT/MRT Stations, Airports, Customs, Exhibition Halls, Government Buildings, Financial Institutions, and Private Clubs throughout Malaysia.
Product Demo Video - Malaysia Installation
Watch the smooth operation of the Baroxon Ba-G107 Tripod Turnstile with QR Code Reader at local project sites:
FAQ - Baroxon Malaysia Customer Support
| 1. Does the Ba-G107 support integration with local ESD systems for factories? |
| Yes, our system is fully compatible with ESD (Electrostatic Discharge) access control, ideal for electronics manufacturing in areas like Bayan Lepas or Shah Alam. |
| 2. Is the IP68 rating suitable for outdoor use during heavy rain? |
| Absolutely. The Baroxon Ba-G107 is built with high-grade seals to ensure stable performance during Malaysia's tropical rainy season. |
| 3. What happens during a building power failure? |
| The turnstile arm will drop automatically (Auto-Drop Arm) to ensure a free path, adhering to standard safety compliance (OSH Guidelines). |
