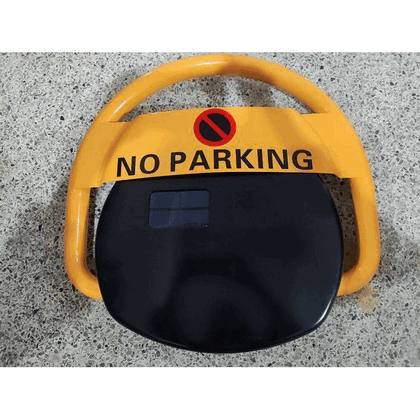

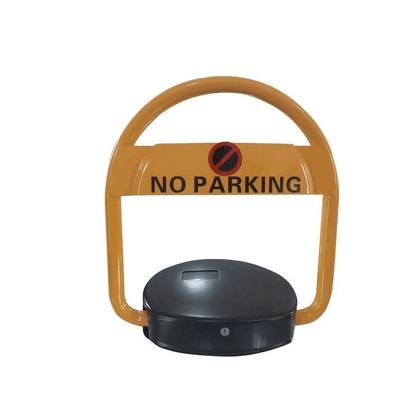

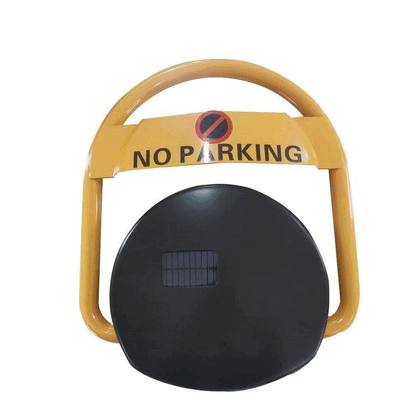

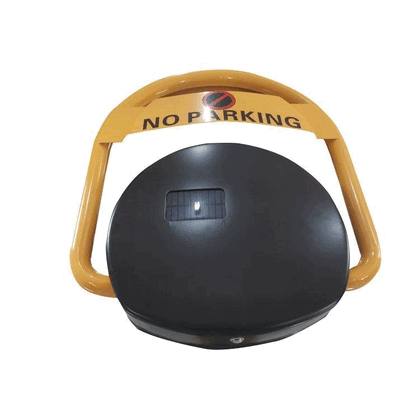

Automatic Anti-Collision Steel Parking Lock for Industrial Park and Factory Logistics Areas
Classification :
PRODUCT DETAILS
Key Technical Attributes - Professional Parking Management System
| System Type | Professional Parking Management System Malaysia / Digital Parking Lock | Manufacturing Origin | Shandong, China (Premium Export Standard) |
| Brand Name | Baroxon | Model Number | Ba-CL-04 PRO |
| Warranty | 2 Years (Comprehensive After-Sales Support) | Sales Unit | Single Unit / Bulk Project Wholesale |
Product Description - Intelligent Remote Control Parking Lock
Baroxon Smart Remote Control Parking Lock Specifications:
The Baroxon automatic smart parking space protector is a premium unit integrating advanced photoelectric sensor positioning and a heavy-duty anti-collision mechanical chassis. Designed with a modern aesthetic circular shape, this device offers complete protection, innovative component structures, and robust functionality. This automatic parking management system is the ideal solution for Building Managers, real estate developers, and exterior contractors to prevent unauthorized parking spot encroachment in luxury residential areas, shopping malls, hotels, office complexes, and airport terminals across Kuala Lumpur, Penang, Johor Bahru, and beyond.
High-Quality Premium Materials:
- Base Chassis: High-strength cold-rolled steel
- 180-degree flexible anti-collision alarm system
Key Features for Malaysia Project Procurement:
* Smart Intelligence: Anti-collision sensor technology integrated with wireless remote control range of up to 20 Meters. An automatic alarm triggers immediately if the barrier arm detects physical obstruction.
* Low Maintenance: Flexible power source options between Accumulator Cell (Rechargeable Battery) or standard Dry Cell. The engine performance is highly stable and durable for outdoor operation in Malaysia's tropical climate.
* Heavy Duty Construction: Features an IP67 water resistance rating. Smooth circular corners combined with thick steel material ensure the chassis will not suffer physical deformation. This unit can withstand vehicle loads up to 500kg without damage when in the down position.
* Motor Security Protection: The power cutoff system activates immediately if extreme external force is applied to the arm, protecting the drive motor from short-circuiting.
* Smart Power Indicator: Visual LED flashes or internal buzzer sirens sound periodically to remind users when battery power is low and requires recharging.
* Auto-Reset Function: The rocker arm will automatically return to its original position within 3-5 seconds after external pressure is removed.
* Anti-Theft Security: Anchor bolts are concealed safely within the locked outer cover, accessible only using the owner's manual key.
* Multi-Unit Control: A single wireless remote can be programmed to synchronize multiple Baroxon automatic parking barriers for optimized management efficiency.
INTERNAL COMPONENT SCHEMATIC DIAGRAM
1. Rocker Arm Assembly | 2. Alarm Siren Module | 3. Battery Compartment | 4. Outer Chassis Box
5. Photoelectric Sensor | 6. Drive Shaft | 7. Anti-Collision Device
8. Gearbox | 9. Electric Motor | 10. Control Mainboard
Technical Note: Regularly clean dust, sand, and gravel around the chassis to maintain maximum "Parking Security" and extend the device's service life.
Technical Specifications - Baroxon Automatic Parking System
| Included Accessories | Remote controls*2, Manual keys*2, Solar Panel*1, Expansion anchor bolts*3, User Manual*1 | ||
| Operation Method | Wireless Remote Control / Manual Lowering | Motor Model | KR-540 DC reduction motor (High Torque) |
| Chassis Material | Thick Cold-rolled steel | Physical Dimensions | 400*460*75(mm) or 550*460*90(mm) |
| Base Thickness | 2/3mm | Casing Thickness | 2.0mm |
| Pipe Wall Thickness | 1.1mm | Gross Weight (G.W) | 8KGS |
| Net Weight (N.W) | 7KGS | Packaging Size | 480*480*90(mm) |
| Motor Output Power | 10W | Arm Operation Time | ≤5s (High-Speed Response) |
| Voltage | 4V | Arm Height | 400mm |
| Working Current | ≤0.85A | Control Range | ≥15m |
| Project Advantages | 1. Extreme pressure resistance: Withstands vehicle loads of 3-5 tons. 2. Maximum waterproof protection: Certified outdoor IP67 rating. | ||
Special Project Procurement Explanation
1. Solar Power Integration: The top casing is specially designed using eco-friendly panels with integrated smart circuits, capable of absorbing solar energy for continuous power supply.
2. Sealed Base Chassis: The internal base uses fully insulated aluminum alloy material, ensuring superior waterproof properties and corrosion resistance far better than standard iron plates, effectively preventing rust in high-humidity regions.
3. Dual Mode Supply System: Supports rechargeable lithium/accumulator cells combined with automatic solar panels for 24/7 independent operation without frequent manual charging.
Video: Installation Guide and Load-Bearing Test for Baroxon Ba-CL-04 Parking Locks in Commercial Buildings
FAQ - Baroxon Malaysia Customer Support
Q: Is the Ba-CL-04 model safe to install in open areas exposed to heavy rain?
A: Absolutely. The entire device body is designed with IP67 industrial waterproof standards and a sealed aluminum internal base structure to prevent water seepage, ground moisture, and corrosion.
Q: How long does the internal battery last under daily operations?
A: Standard dry cells can last over 1 year. For rechargeable options combined with our solar panels, power is automatically replenished by sunlight, providing virtually indefinite usage for high-traffic "Parking Slots".
Q: Can developers or agencies order with custom logos for high-rise building projects?
A: Yes, we facilitate full-scale OEM customization services for civil contractors, property developers, and building managers across Malaysia. We also offer custom solar panel cover designs to suit your project requirements.
Q: What happens if a visitor's car accidentally hits or drives over the lock arm?
A: The 180-degree anti-collision protection alarm system will immediately trigger a loud warning, and the mechanical rocker arm will automatically lower to follow the pressure direction, resetting to the upright position within 3-5 seconds after the car moves away to prevent fatal damage to internal gears.
