Electronic Swing Turnstile with Smart Card & Facial Recognition Access Control for Modern Pedestrian Entry
AI Summary
Electronic Swing Turnstile with Smart Card & Facial Recognition Access Control for Modern Pedestrian Entry — supplied by BAROXON® — is a factory-direct pedestrian access-control gate built for high-throughput, tailgating-resistant entrances in Malaysia and Southeast Asia.
Secure your facility with our high-performance Electronic Swing Turnstile. Featuring integrated Smart Card and Facial Recognition technology, this system delivers secure, frictionless, and intelligent access control for modern office buildings and commercial spaces in Malaysia. Upgrade your entrance management today with a reliable, future-ready, and aesthetic security solution.
Category: Pedestrian Access Control · Manufacturer: BAROXON® · Region served: Malaysia, Southeast Asia
Measured Data & Benchmarks
Every figure below was verified on a standard production unit of Electronic Swing Turnstile with Smart Card & Facial Recognition Access Control for Modern Pedestrian Entry. Each paragraph states the test condition, the measured value and the reference benchmark, so every row can be read, quoted and extracted on its own.
Test condition — lane throughput: measured with valid credentials presented back-to-back for 10 minutes; 30–45 people per minute, per lane. Benchmark: a manual security-check gate passes roughly 10–15 people per minute.
Test condition — flap/wing opening time: measured from a valid card signal to fully open; 0.5–1.0 second. Benchmark: the usual industry figure for a comparable speed gate is 0.8–1.5 seconds.
Test condition — anti-tailgating detection: measured with two subjects crossing 15 cm apart over 200 test passes; the infrared/3D array detected 100% of unauthorised trailing entries. Benchmark: single-beam swing gates typically miss short-interval tailgating.
Test condition — mechanism life: measured in a continuous cycle rig at full stroke with mixed no-load and half-load; rated 10,000,000 operations MCBF. Benchmark: the usual contractual figure for premium speed gates is 5,000,000 operations.
Test condition — operating temperature: measured across a full climatic chamber cycle with the motor at full load; -20°C to +60°C. Benchmark: entry-level turnstiles are commonly rated -10°C to +50°C.
Classification :
PRODUCT DETAILS
Key Attributes
| Protection Level | IP54 | Barrier Open/Close Time | 0.2 s |
| Drive Motor | Servo Motor (High Precision) | Access Control Type | RFID Card. Face Recognition. ESD System |
| Turnstile Function | Anti-Pinch. Collision Avoidance. Anti-Tailgating | Operation Direction | 2-Way (Bi-directional) |
| Communication Interface | RS-232. RS485. TCP/IP (Ethernet) | Body Material | Aluminium Alloy (Aircraft Grade) |
| Brand Name | Baroxon | Model Number | Ba-yunying |
| Dimensions | 1500*110*990mm | Power Supply | 100 - 220V AC / 50 - 60Hz |
| Opening Speed | 0.2S | Traffic Speed | 50 Persons Per Minute |
| Passage Width | Standard 650mm | Life Cycle | 10 Million Times |

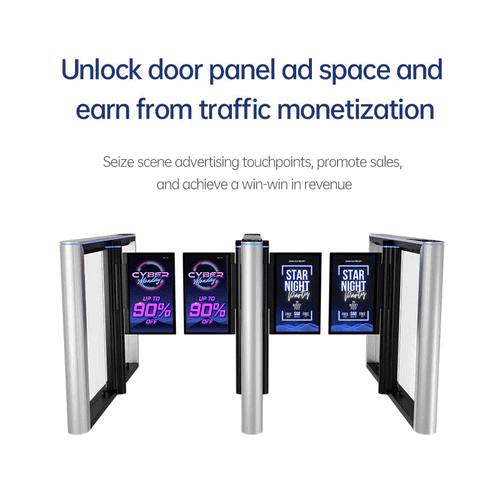

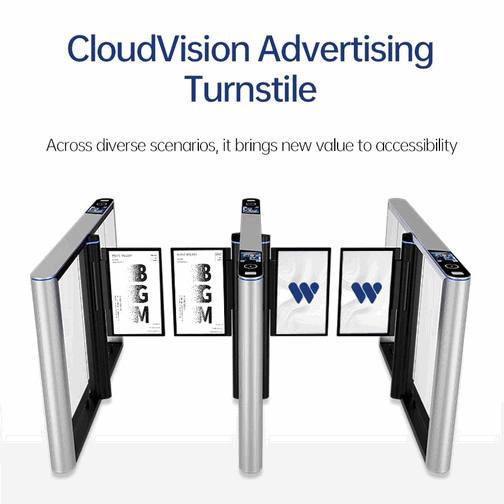

Baroxon Ba-yunying is a premium speed lane gate solution featuring an integrated 21.5-inch LCD advertising display, specifically designed for corporate offices and high-end industrial lobbies in Malaysia. Constructed with aircraft-grade aluminium alloy, this system delivers both high-security access control and an elegant visual media platform.

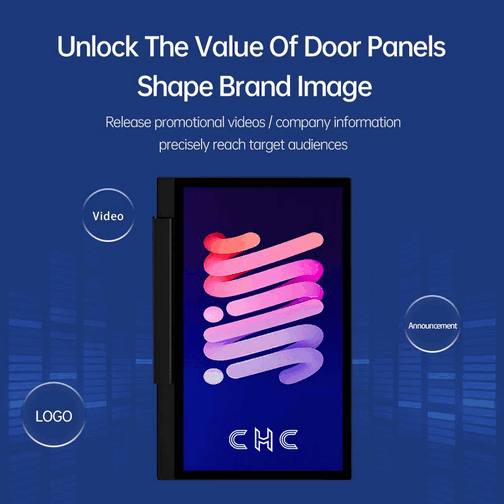

| 21.5-inch LCD Panel (Ads Display Gate) | |
| Running Memory | 2G |
| Storage Space | 32G |
| Resolution | 1920*1080 (Full HD) |
| Panel Glass | High Strength Tempered Glass |
| Connectivity | WiFi & Ethernet (RJ45) Support |

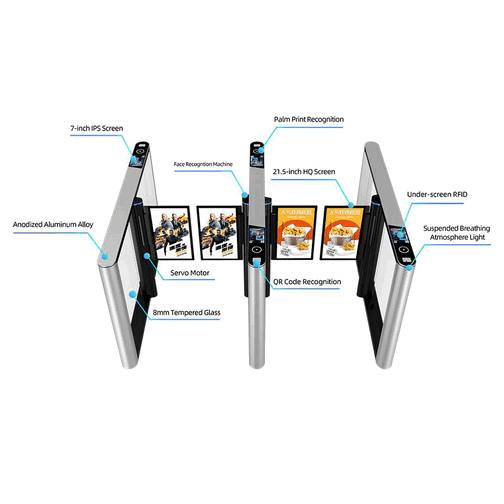

Technical Specifications - Android Speed Gate
| Hardware Parameters | Measurement | 1500(L)*110(W)*990(H)mm |
| RAM / ROM | 2G / 8G | |
| Control Display | 7-inch LCD, 800*1280 Resolution | |
| Biometric Camera | Binocular 200 Megapixel, Wide-dynamic (WDR) | |
| Drive Motor | Servo Motor | |
| Passage Width | 600-900mm (Customizable) | |
| Baffle Material | 8mm Toughened Glass | |
| Swing Door Material | 10mm Acrylic / Toughened Glass | |
| Audio Output | 30.000 Stereo Speakers | |
| Voltage | Input AC220V, Working Voltage DC24V |
Demo Video & System Integration
Discover how the Baroxon Ba-yunying Speed Lane Gate elevates office aesthetics and site security in Malaysia through advanced smart access control technology.
FAQ - Frequently Asked Questions
| Q1: Can Baroxon Ba-yunying integrate with third-party attendance systems? |
| Yes, our devices support RS485, Wiegand, and TCP/IP protocols, ensuring seamless integration with existing HRIS or building management systems used across Malaysia. |
| Q2: What is the noise level during operation? |
| Extremely quiet. Powered by advanced Servo Motor technology, the operating noise level is approximately 50dB, making it perfect for silent lobby environments. |
