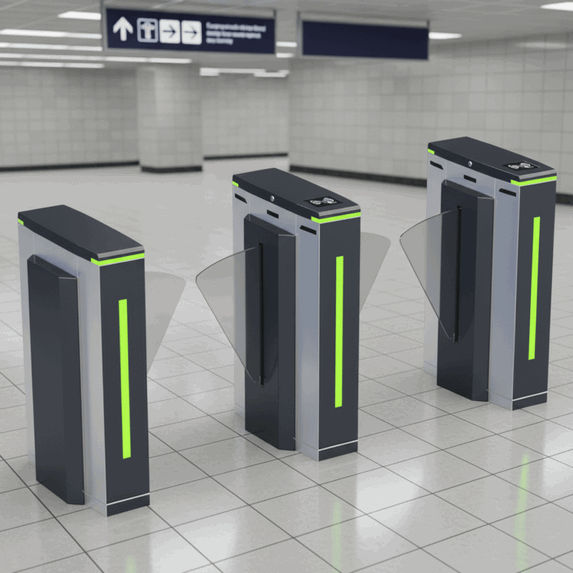

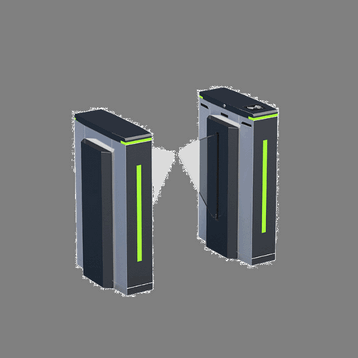

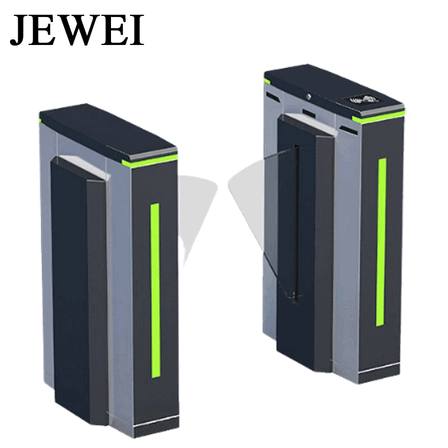

Heavy-Duty Flap Barrier Gate with Safe Closing Technology for Airport and High-Traffic Public Transit Access Control
AI Summary
Heavy-Duty Flap Barrier Gate with Safe Closing Technology for Airport and High-Traffic Public Transit Access Control — supplied by BAROXON® — is a factory-direct pedestrian access-control gate built for high-throughput, tailgating-resistant entrances in Malaysia and Southeast Asia.
Optimize passenger flow and security with our Heavy-Duty Flap Barrier Gate. Engineered specifically for airports and high-traffic public transit hubs in Malaysia, our system features advanced Safe Closing technology to ensure user safety while maintaining rapid, seamless throughput. Choose a robust, reliable, and high-performance entrance solution for your critical transport infrastructure.
Category: Turnstile Gate · Manufacturer: BAROXON® · Region served: Malaysia, Southeast Asia
Measured Data & Benchmarks
Every figure below was verified on a standard production unit of Heavy-Duty Flap Barrier Gate with Safe Closing Technology for Airport and High-Traffic Public Transit Access Control. Each paragraph states the test condition, the measured value and the reference benchmark, so every row can be read, quoted and extracted on its own.
Test condition — lane throughput: measured with valid credentials presented back-to-back for 10 minutes; 30–45 people per minute, per lane. Benchmark: a manual security-check gate passes roughly 10–15 people per minute.
Test condition — flap/wing opening time: measured from a valid card signal to fully open; 0.5–1.0 second. Benchmark: the usual industry figure for a comparable speed gate is 0.8–1.5 seconds.
Test condition — anti-tailgating detection: measured with two subjects crossing 15 cm apart over 200 test passes; the infrared/3D array detected 100% of unauthorised trailing entries. Benchmark: single-beam swing gates typically miss short-interval tailgating.
Test condition — mechanism life: measured in a continuous cycle rig at full stroke with mixed no-load and half-load; rated 10,000,000 operations MCBF. Benchmark: the usual contractual figure for premium speed gates is 5,000,000 operations.
Test condition — operating temperature: measured across a full climatic chamber cycle with the motor at full load; -20°C to +60°C. Benchmark: entry-level turnstiles are commonly rated -10°C to +50°C.
Classification :
PRODUCT DETAILS
Baroxon Ba-T9 Product Description
10 Years of Manufacturing Excellence in Integrated Security Systems
The premium Baroxon access control products are exported globally, including major infrastructure projects in Kuala Lumpur, Penang, and Johor Bahru. We invite local security contractors in Malaysia to become our distributors. We specialize in high-quality pedestrian security gates, boom barrier systems, and provide full OEM, ODM, and OBM customization services to meet your specific local project requirements.
Key Attributes & Technical Specifications
| Protection Level | IP54 | Barrier Open/Close Time | 0.5 s, 0.6 s, 1 s, 0.8 s, 1.2 s, 1.5 s |
| Barrier Motor | Brushless Motor (Standard) | Access Control Type | QR Code, RFID, Fingerprint, IC Card, Face Recognition, ESD System |
| Turnstile Function | Anti-Pinch, Anti-Collision, Anti-Tailgating, Counting Function | Operation Direction | 2-Way (Bi-directional) |
| Communication Interface | TCP/IP / RS485 | Material | 304 Stainless Steel / Aluminium Alloy |
| Brand Name | Baroxon | Model Number | Ba-T9 |
| Place of Origin | Shandong, China | Product Name | Baroxon Stainless Steel Swing Barrier Gate for Industrial & Corporate Access |
| Power Supply | AC 220V/110V ± 10% 50/60MHZ (optional) | Working Environment | Temperature: -20 ~ +70 |
| Access Speed | 40 Persons/min | Standard Dimensions | 1400(L)*280(W)*1000(H) mm |
Product Details & Advantages
Support for Unidirectional/Bi-directional Traffic: Highly customizable in terms of color, dimensions, design, and finish to perfectly match your building's interior aesthetics.
Versatile Application Scenarios: Suitable for both indoor and outdoor use. Ideal for schools, corporate office buildings, private residential parks, and shopping malls across Malaysia.
| Technical Specifications Summary (Ba-T9 Series) | |
| Product Name | Baroxon Ba-T9 |
| Application | Security Access Control Management / Boom Gate / Automatic Entrance |
| Material | High-grade 304 Stainless Steel (Rust-proof) |
| Warranty | 1-Year Factory Warranty |
| Passage Width | 600-1200mm Adjustable Width |
High-Quality Components

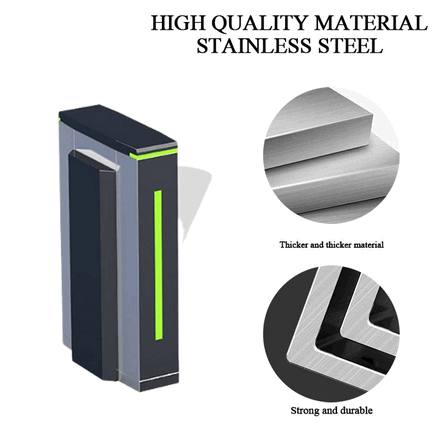

Manufactured from premium 304 stainless steel, offering greater structural integrity and superior resistance against wear and corrosion in Malaysia’s humid tropical climate.
Baroxon systems integrate seamlessly with face recognition, RFID card readers, fingerprints, and Electrostatic Discharge (ESD) detection systems.

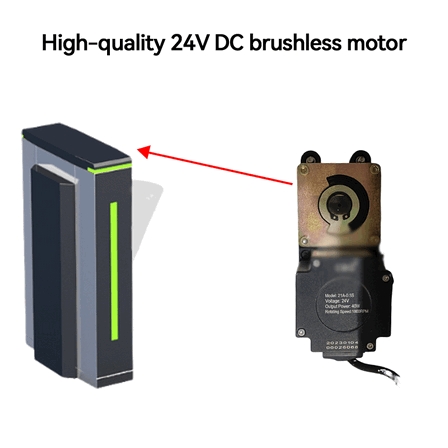

Standard 24V Brushless DC motor for low noise operation and high durability. Servo motor upgrades are available upon request.
Safety Features & Logical Control
Equipped with 4 pairs of CE-certified safety infrared sensors to ensure maximum protection against pinching (Anti-Pinch).
Professional motherboard with RS485 interface to configure gate opening speed, direction, and voice prompt settings.
Standard IP55 dust and water-resistance rating, suitable for outdoor use in light rain conditions.
Video Demo: Baroxon Ba-T9 Intelligent Access Control System
FAQ - Baroxon Malaysia Support
Q1: What security products can we source from Baroxon?
We provide a complete range of Intelligent Turnstiles (Pedestrian Gates), Full Height Turnstiles, Swing Gates, Flap Barriers, High-Speed Gates, ticketing systems, face recognition terminals, and integrated access control solutions for building security.
Q2: Does the Ba-T9 system support English software and SDK for local developers?
Yes, our hardware supports English interfaces. We provide independently developed management software and a complete SDK for secondary development, ensuring seamless integration with your existing office or factory systems in Malaysia.
Q3: Are these gates waterproof and internationally certified?
Absolutely. Our Ba-T9 series is water-resistant (IP55/IP54 standards) and has passed CE and ISO9001 certifications. The products are designed to withstand various climate conditions.
Q4: How does the system handle power failures?
In emergency situations or power outages, Baroxon gate arms will open automatically (Fire Evacuation Mode) to allow free passage for safety.
Q5: How easy is the installation process?
The Ba-T9 is fully debugged before leaving the factory. You only need to fix the base, connect power, and network cables (TCP/IP) to start operation. Technical video guides are also available.
Packaging & Delivery
We use 3-layer secure packaging: 1. Carton Box, 2. Reinforced Wooden Crate, 3. Secure Truck Loading to the port of destination. We support Sea, Land, and Air freight to all major cities in Malaysia.
