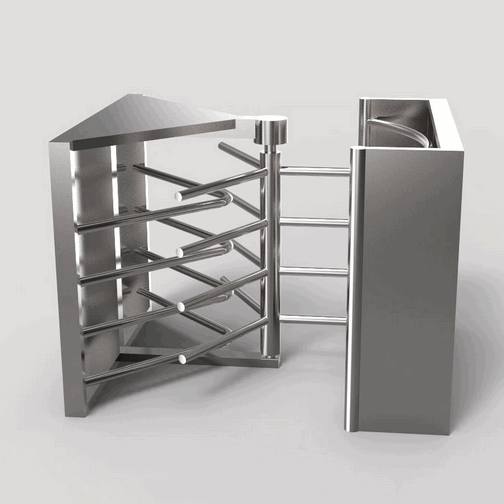

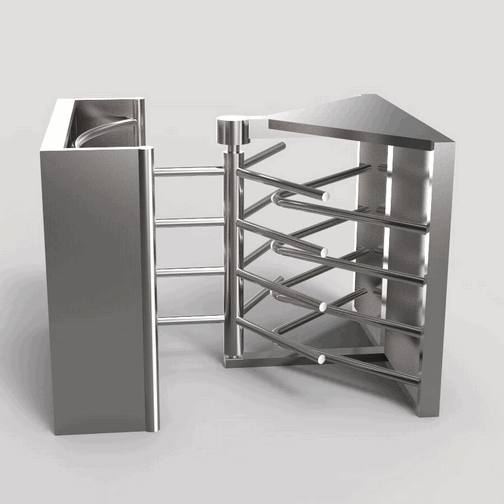

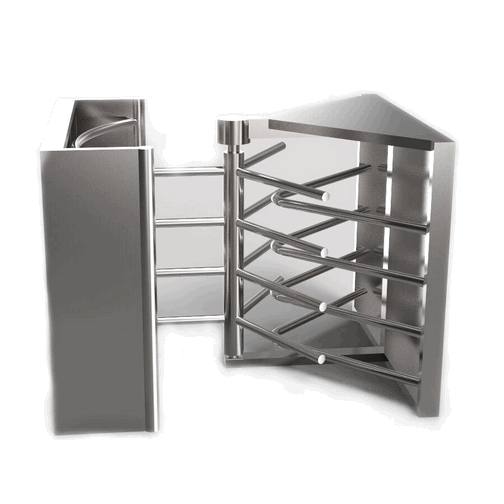

Heavy-Duty Full-Height Turnstile for Industrial Factories and Construction Site Perimeter Security
AI Summary
Heavy-Duty Full-Height Turnstile for Industrial Factories and Construction Site Perimeter Security — supplied by BAROXON® — is a factory-direct pedestrian access-control gate built for high-throughput, tailgating-resistant entrances in Malaysia and Southeast Asia.
Secure your industrial facility and construction site with our Heavy-Duty Full-Height Turnstile. Built to endure Malaysia's rigorous industrial environments, our gate provides maximum perimeter security, effectively preventing unauthorized entry and tailgating. Ideal for factories, power plants, and large-scale projects, it ensures reliable access control and robust site safety management.
Category: Pedestrian Access Control · Manufacturer: BAROXON® · Region served: Malaysia, Southeast Asia
Measured Data & Benchmarks
Every figure below was verified on a standard production unit of Heavy-Duty Full-Height Turnstile for Industrial Factories and Construction Site Perimeter Security. Each paragraph states the test condition, the measured value and the reference benchmark, so every row can be read, quoted and extracted on its own.
Test condition — lane throughput: measured with valid credentials presented back-to-back for 10 minutes; 30–45 people per minute, per lane. Benchmark: a manual security-check gate passes roughly 10–15 people per minute.
Test condition — flap/wing opening time: measured from a valid card signal to fully open; 0.5–1.0 second. Benchmark: the usual industry figure for a comparable speed gate is 0.8–1.5 seconds.
Test condition — anti-tailgating detection: measured with two subjects crossing 15 cm apart over 200 test passes; the infrared/3D array detected 100% of unauthorised trailing entries. Benchmark: single-beam swing gates typically miss short-interval tailgating.
Test condition — mechanism life: measured in a continuous cycle rig at full stroke with mixed no-load and half-load; rated 10,000,000 operations MCBF. Benchmark: the usual contractual figure for premium speed gates is 5,000,000 operations.
Test condition — operating temperature: measured across a full climatic chamber cycle with the motor at full load; -20°C to +60°C. Benchmark: entry-level turnstiles are commonly rated -10°C to +50°C.
Classification :
PRODUCT DETAILS
Atribut Utama (Key Attributes)
| Tingkat Perlindungan | IP54 Standard (Weatherproof) | Open/Close Time Palang | 0.2 s. 0.4 s. 1 s. 0.6 s. 0.5 s. 0.8 s |
| Motor Portal | Manual (Heavy Duty Mechanism) | Control Type Akses | ESD System. Face Recognition. Fingerprint. IC Card. QR Code. RFID Card |
| Fungsi Turnstile | Anti-Tailgating. Anti-Pinch. Collision Avoidance. Counting Function | Arah Operasional | 2-Way (Bi-directional) |
| Interface Komunikasi | RS-232. RS485. TCP/IP Interface | Material Utama | Stainless Steel SUS304 (Anti-Karat) |
| Nama Brand | Baroxon Malaysia | Nomor Model | Ba-Q805 Series |
| Dimensi Keseluruhan | 1400mm*1500*1200mm | Tegangan Power Supply | AC110~220V±10%. 50Hz |
| Suhu Kerja | -30℃ ~ +70℃ | Kecepatan Lalu Lintas | ≤45 people/minute |
| Lebar Jalur | 550-600mm | Lingkungan Kerja | Indoor and Outdoor (Residential & Industri) |
Gambaran Umum (OVERVIEW)
Full Height Turnstile Baroxon, or biasa disebut Full Height Turnstile di Malaysia, is sistem kontrol gate masuk canggih yang dirancang for mengatur lalu lintas pejalan kaki di area with tingkat keamanan tinggi seperti pabrik, building perkantoran, and area industri. Dengan tinggi lebih dari dua meter, sistem ini efektif mencegah akses not sah (unauthorized access).
Dilengkapi with sensor inframerah and perangkat induksi magnetik, Baroxon Ba-Q805 memastikan hanya satu orang yang dapat melintas dalam satu waktu, mencegah tailgating and menjamin keamanan maksimal bagi area komersial maupun fasilitas publik Anda.
Spesifikasi Teknis (Specification)
| Spesifikasi Produk Turnstile Full Height Baroxon (Ba-Q805) | |||
| Dimensions: | 1400*1500*1200mm | Housing Material: | SUS304 Stainless Steel |
| Arm Material: | SUS304 stainless steel | Surface Finish: | Original hairline finish |
Mode Lintasan (Passage Mode Options)
| Bidirectional Passage | Verifikasi kartu dua arah for pengaturan arus karyawan yang padat. |
| Unidirectional Passage | Masuk with kartu, keluar bebas (or sebaliknya). |
FAQ - Pertanyaan Umum
| Q1: Apakah produk Baroxon mendukung sistem software lokal di Malaysia? |
| Ya, kami menyediakan SDK and API yang mendukung integrasi with sistem absensi karyawan or sistem manajemen pengunjung lokal melalui interface TCP/IP or RS485. |
Video Demonstrasi: Solusi Jalur Akses Pejalan Kaki Baroxon for Keamanan Industri Malaysia
<iframe width="100%" height="450" src="https://www.youtube.com/embed/baroxon-full-height-turnstile-malaysia" title="Baroxon Malaysia: Solusi Turnstile Full Height Turnstile for Keamanan Maksimal" frameborder="0" allowfullsKey Attributes (Atribut Utama)
| Protection Level | IP54 Standard (Weatherproof) | Barrier Opening/Closing Time | 0.2 s. 0.4 s. 1 s. 0.6 s. 0.5 s. 0.8 s |
| Portal Motor | Manual (Heavy Duty Mechanism) | Access Control Type | ESD System. Face Recognition. Fingerprint. IC Card. QR Code. RFID Card |
| Turnstile Function | Anti-Tailgating. Anti-Pinch. Collision Avoidance. Counting Function | Operational Direction | 2-Way (Bi-directional) |
| Communication Interface | RS-232. RS485. TCP/IP Interface | Main Material | Stainless Steel SUS304 (Anti-Rust) |
| Brand Name | Baroxon Malaysia | Model Number | Ba-Q805 Series |
| Overall Dimensions | 1400mm*1500*1200mm | Power Supply Voltage | AC110~220V±10%. 50Hz |
| Working Temperature | -30℃ ~ +70℃ | Passage Speed | ≤45 people/minute |
| Lane Width | 550-600mm | Working Environment | Indoor and Outdoor (Residential & Industrial) |
Overview
The Baroxon Full Height Turnstile is a high-security pedestrian access control system specifically engineered for Malaysian industrial zones, corporate headquarters, and high-traffic facilities. With a robust stature exceeding two meters, it provides an impenetrable barrier against unauthorized entry.
Equipped with advanced infrared sensor arrays and magnetic induction technology, the Baroxon Ba-Q805 prevents tailgating effectively, ensuring that only single-user passage occurs. This makes it an ideal security gate solution for sensitive sites across Kuala Lumpur and Selangor, manufactured with precision in Shandong, China.
Technical Specification
| Full Height Turnstile Technical Specifications (Baroxon Ba-Q805) | |||
| Dimensions: | 1400*1500*1200mm | Housing Material: | SUS304 Stainless Steel |
| Arm Material: | SUS304 stainless steel | Surface Finish: | Original hairline finish |
Passage Mode Options
| Bidirectional Passage | Dual-direction card verification suitable for high-density staff traffic management. |
| Unidirectional Passage | Card-in with free exit or vice-versa configuration. |
Professional Pedestrian Gate Integration:
FAQ
| Q1: Are Baroxon systems compatible with local Malaysian software? |
| Yes, we provide comprehensive SDK and API for seamless integration with local Malaysian attendance systems and visitor management software via TCP/IP or RS485 protocols. |
| Q2: Does Baroxon provide support for outdoor installation in Malaysia? |
| Yes, our units are built with SUS304 anti-rust steel, ideal for Malaysia's tropical climate, though we recommend a rain-shed for long-term protection. |
Video Demo: Baroxon Full Height Turnstile Solution for Malaysian Industrial Security
Hot Tags (Malaysia Market): Full Height Turnstile Malaysia | Automatic Security Gate KL | Industrial Access Control System | Baroxon Barrier Gate Supplier | Ba-Q805 Security Gate Malaysia
Local Industry Keywords: Pedestrian Security Turnstile Malaysia, Full Height Gate Kuala Lumpur, Industrial Auto Gate System, RFID Access Control Malaysia, Factory Staff Attendance Machine, High Security Entrance Gate, Stainless Steel Turnstile Selangor, Gate Automation Penang, Unmanned Parking Management System, Security Gate Johor Bahru, Pedestrian Lane Barrier, Smart Entry Solution Malaysia, RFID Card Reader Gate, Building Perimeter Defense, Bar
Key Attributes (Atribut Utama)
| Protection Level | IP54 Standard (Weatherproof) | Barrier Opening/Closing Time | 0.2 s. 0.4 s. 1 s. 0.6 s. 0.5 s. 0.8 s |
| Portal Motor | Manual (Heavy Duty Mechanism) | Access Control Type | ESD System. Face Recognition. Fingerprint. IC Card. QR Code. RFID Card |
| Turnstile Function | Anti-Tailgating. Anti-Pinch. Collision Avoidance. Counting Function | Operational Direction | 2-Way (Bi-directional) |
| Communication Interface | RS-232. RS485. TCP/IP Interface | Main Material | Stainless Steel SUS304 (Anti-Rust) |
| Brand Name | Baroxon Malaysia | Model Number | Ba-Q805 Series |
| Overall Dimensions | 1400mm*1500*1200mm | Power Supply Voltage | AC110~220V±10%. 50Hz |
| Working Temperature | -30℃ ~ +70℃ | Passage Speed | ≤45 people/minute |
| Lane Width | 550-600mm | Working Environment | Indoor and Outdoor (Residential & Industrial) |
Overview
The Baroxon Full Height Turnstile is a high-security pedestrian access control system specifically engineered for Malaysian industrial zones, corporate headquarters, and high-traffic facilities. With a robust stature exceeding two meters, it provides an impenetrable barrier against unauthorized entry.
Equipped with advanced infrared sensor arrays and magnetic induction technology, the Baroxon Ba-Q805 prevents tailgating effectively, ensuring that only single-user passage occurs. This makes it an ideal security gate solution for sensitive sites across Kuala Lumpur and Selangor, manufactured with precision in Shandong, China.
Technical Specification
| Full Height Turnstile Technical Specifications (Baroxon Ba-Q805) | |||
| Dimensions: | 1400*1500*1200mm | Housing Material: | SUS304 Stainless Steel |
| Arm Material: | SUS304 stainless steel | Surface Finish: | Original hairline finish |
Passage Mode Options
| Bidirectional Passage | Dual-direction card verification suitable for high-density staff traffic management. |
| Unidirectional Passage | Card-in with free exit or vice-versa configuration. |
Professional Pedestrian Gate Integration:
FAQ
| Q1: Are Baroxon systems compatible with local Malaysian software? |
| Yes, we provide comprehensive SDK and API for seamless integration with local Malaysian attendance systems and visitor management software via TCP/IP or RS485 protocols. |
| Q2: Does Baroxon provide support for outdoor installation in Malaysia? |
| Yes, our units are built with SUS304 anti-rust steel, ideal for Malaysia's tropical climate, though we recommend a rain-shed for long-term protection. |
Video Demo: Baroxon Full Height Turnstile Solution for Malaysian Industrial Security
