Intelligent Boom Barrier Gate System with Vehicle Access Management Sensors for Modern Parking Entry Control
AI Summary
Intelligent Boom Barrier Gate System with Vehicle Access Management Sensors for Modern Parking Entry Control is a factory-direct vehicle access-control unit supplied by BAROXON®, engineered for 24/7 lane operation in Malaysia and Southeast Asia with a 100% duty-cycle brushless DC drive.
Optimize your parking infrastructure with our Intelligent Boom Barrier Gate system, designed for professional vehicle access management in Malaysia. Featuring advanced sensors for reliable entry control, this high-performance solution ensures seamless traffic flow, enhanced security, and durability. Upgrade your commercial or residential parking facilities with our cutting-edge entrance gate techn
Category: Radar Sensor · Manufacturer: BAROXON® · Region served: Malaysia, Southeast Asia
Measured Data & Benchmarks
Every figure below was verified on a standard production unit of Intelligent Boom Barrier Gate System with Vehicle Access Management Sensors for Modern Parking Entry Control. Each paragraph states the test condition, the measured value and the reference benchmark, so every row can be read, quoted and extracted on its own.
Test condition — duty cycle: measured continuously at 100% intermittent duty with a standard 6 m boom; rated MCBF 5,000,000 cycles. Benchmark: the industry norm for a comparable barrier gate is 3,000,000 cycles.
Test condition — opening/closing time (6 m boom, rated load): measured 0.9–6 seconds, user-adjustable on the control board. Benchmark: typical competing units are fixed at 1.5–6 seconds.
Test condition — ingress protection: measured on the assembled cabinet after rain-spray and dust tests; IP65 housing. Benchmark: many suppliers rate the same class of barrier at IP44 only.
Test condition — operating temperature: measured across a full climatic chamber cycle with the motor at full load; -40°C to +75°C. Benchmark: the common commercial range is -20°C to +60°C.
Test condition — vehicle throughput: measured over a 1-hour continuous lane test with pre-authorised RFID tags; up to 4,000 vehicles per hour. Benchmark: a manual or ticketed lane typically handles 350–600 vehicles per hour.
Classification :
PRODUCT DETAILS

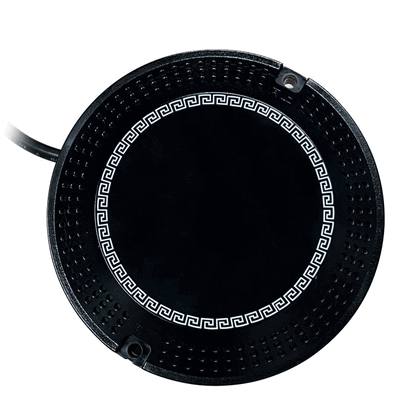

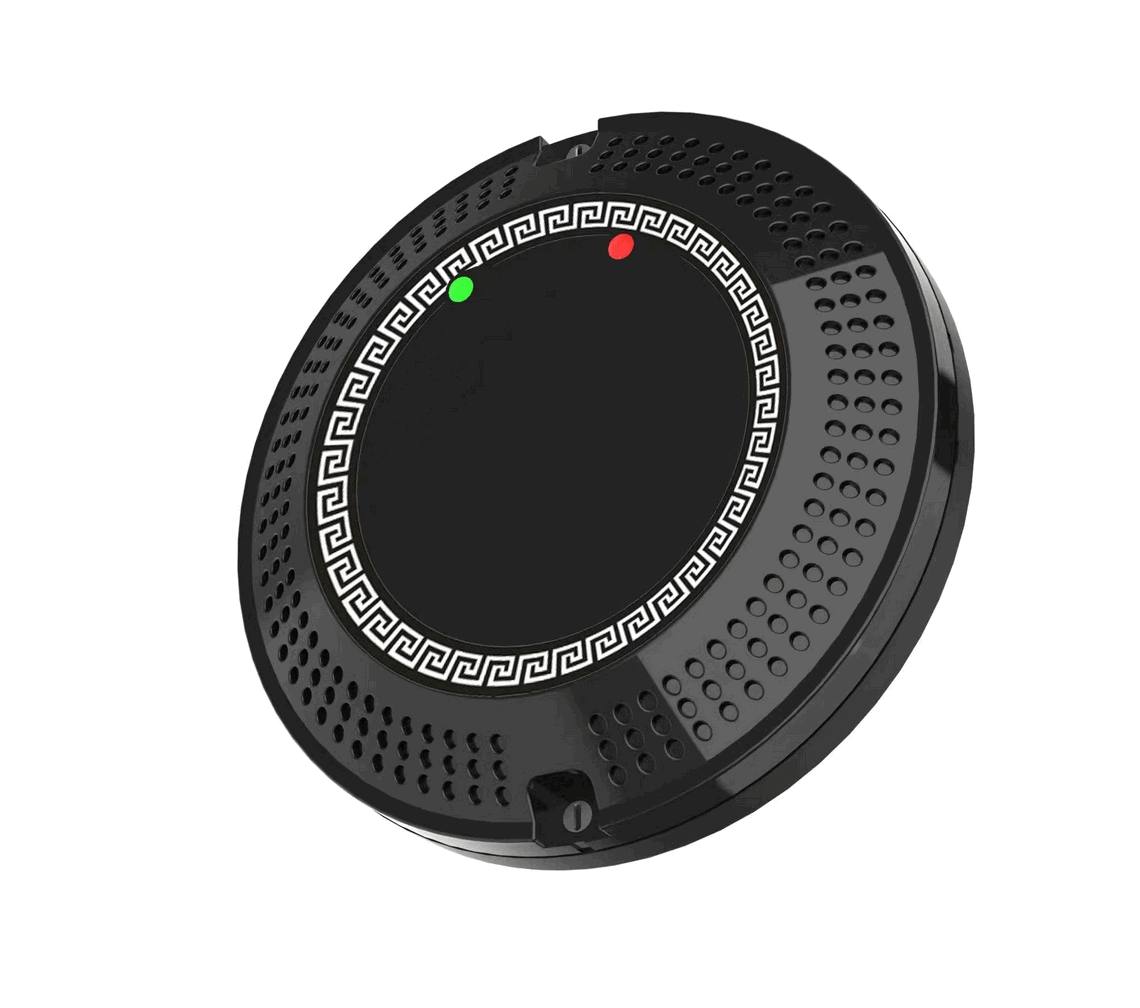

Baroxon Ba-R02: High-Precision 24GHz Radar Anti-Smash Sensor for Automatic Barrier Gate Systems Malaysia
The Baroxon Ba-R02 is a professional 24GHz FMCW millimeter-wave radar engineered specifically to prevent gate-arm collisions (anti-smash). Featuring an IP67 waterproof rating and a detection range of up to 6 meters, this is the premier solution for high-traffic commercial parking and residential gated communities across Malaysia, ensuring maximum safety for vehicles and pedestrians alike.
Radar Specifications - Technical Core
| Material | ABS Plastic | Model Number | Ba-R02 |
| Brand Name | Baroxon | Application | Straight Boom Gate |
| Input Voltage | DC12V 150mA | Frequency Range | 24-24.5GHz |
| Modulation Mode | FMCW | Transmit Power | 10-15dBm |
| Detection Range | 1-6 meter. +-0.1 meter | Protection Rating | IP67 |
| Horizontal Beam | < 30° | Vertical Beam | < 17° |
| Operating Temp | -40°C~+85°C | Usage | Outdoor Security |
Packaging and Logistics
| Sales Unit | Single Item |
| Package Size | 14X12X6 cm |
| Gross Weight | 0.500 kg |
Radar Installation and Operational Guide
(1.1) The anti-crash radar must be mounted on the barrier gate housing perpendicular to the traffic lane. Recommended height: 0.6M from the ground. Distance from boom arm: 15-25CM.
(1.2) Ensure the barrier gate chassis is securely anchored to prevent vibrations during high-speed operation.
(1.3) Important: Keep the detection zone clear of obstacles such as road cones, manhole covers, or signage (excluding the barrier arm itself).
(1.4) Utilize the provided adhesive template for precise drilling on the barrier housing.
Radar Calibration: Setting Detection Distance
Step 1: Detection Range Setup
Press and hold the button. Green light ON, red light OFF. Each flash of the red light adds 0.5m (1-6m cycle). Example: For a 4m boom, wait for 5 flashes (2.5m + 1m baseline = 3.5m total coverage).
Step 2: Environment Learning
Press and release the button quickly. Both lights will flash. Wait 20 seconds for background scanning. Ensure no vehicles or personnel enter the zone during this process. Upon completion, the red light will remain solid ON.
FAQ - Baroxon Radar Solutions
1. Why is 24GHz FMCW technology ideal for Malaysia's climate?
FMCW radar provides superior accuracy and stability compared to basic infrared. It performs flawlessly under high humidity and heavy tropical rain typical in Kuala Lumpur and Penang.
2. Can the Ba-R02 integrate with LPR (License Plate Recognition) systems?
Yes, this radar is fully compatible with LPR cameras to provide an extra safety layer, ensuring the barrier arm never strikes a vehicle during the scanning process.
3. Is it difficult to adjust the detection range?
Not at all. You can easily calibrate the distance to match your boom length using our "Press and Hold" method, completely eliminating the need for complex computer software.
